The spinal implant business is a big adopter of additive manufacturing as a result of extremely bespoke necessities for spinal implants. And it’s a sector that continues to innovate at an astounding tempo.
It was simply two years in the past when we did this story on how topologically optimized printed titanium spinal cages are serving to sufferers. These cages are used to exchange the disks between vertebrae after surgical procedure.
Now a staff of researchers at College of Pittsburgh Swanson College of Engineering has gone additional and added the power to watch affected person well being with the spinal implants, by use of metamaterials within the printing course of. This good spinal implant makes use of what the researchers are calling “meta-tribomaterials”, which might generate their very own energy and can be utilized for a big selection of sensing and monitoring purposes.
The prefix “tribo” typically signifies some form of rubbing/friction motion, so that provides you some form of indication of the mechanism at work right here. Certainly, in accordance with the analysis paper, it makes use of one thing known as a built-in triboelectric nanogenerator (TENG) to energy itself. By self powering, the implant overcomes a number of limitations of present good implants that depend on batteries to energy them (quick life being one such hurdle).
“Good implants can present real-time biofeedback and supply many therapeutic and diagnostic advantages,” mentioned Amir Alavi, assistant professor of civil and environmental engineering.
“However it is rather difficult to combine cumbersome circuits or energy sources into the small space of implants. The answer is to make use of the implant matrix as an energetic sensing and vitality harvesting medium. That’s what we’ve been centered on.”
Within the analysis, TPU and PLA with carbon black have been used to manufacture the dielectric and conductive layers of the fusion cages. This mixture maximized the electrification between the layers. After they flex along with human movement, the matrix types contacts between the layers, and this generates voltage and in addition supplies sensory information to the implant.
The components have been printed on a Raise3D Pro2 Twin Extruder 3D Printer, with each supplies being deposited throughout the identical print job.
Alavi can be head of the Clever Structural Monitoring and Response Testing (iSMaRT) Lab who’re heading the analysis on the College of Pittsburgh, and his lab has developed a brand new class of multifunctional mechanical metamaterials, which act as their very own sensors, recording and relaying necessary details about the stress and stresses on its construction.
Sounds a little bit bit like this little piezoelectric robotic from final week. That robotic additionally used metamaterials for sensing…
“Spinal fusion cages are being extensively utilized in spinal fusion surgical procedures, however they’re often manufactured from titanium or PEEK polymer supplies (a semi-crystalline, high-performance engineering thermoplastic) with sure mechanical properties,” mentioned Alavi.
“The stiffness of our metamaterial interbody cages might be readily tuned. The implant might be 3D-printed based mostly on the affected person’s particular anatomy earlier than surgical procedure, making it a way more pure match.”

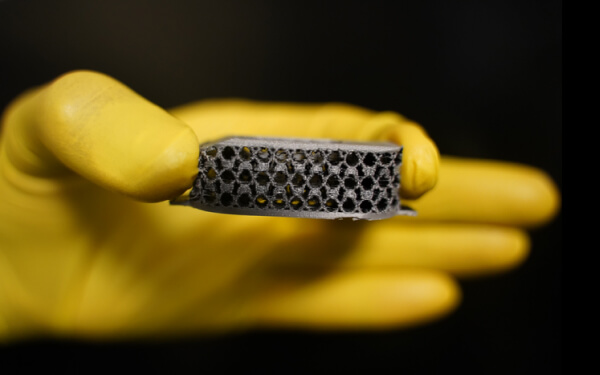

The analysis confirmed that beneath loading situations much like the human lumbar backbone, the plastic fusion cage prototype might generate voltage and present values equal to 9.2 V and 4.9 nA, respectively. The tactic of printing these plastic supplies can be scalable and the researchers state that it may be used for quite a lot of implants at completely different scales, as you’ll be able to see within the picture above.
The paper ( “Affected person-Particular Self-Powered Metamaterial Implants for Detecting Bone Therapeutic Progress”) displaying the analysis was printed within the journal Superior Useful Supplies, and you could find it at this hyperlink.
